Vibrators

Quantity

Online Enquiry

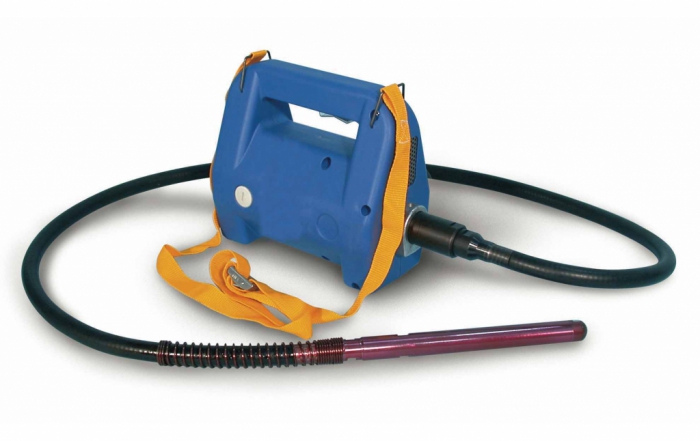

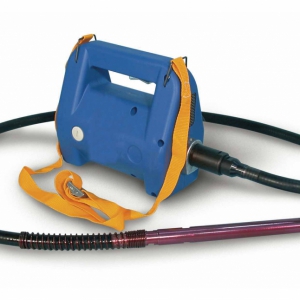

    • Heavy duty, fixed frame concrete vibrator with high frequency induction hardened cap and body for high performance.
    • High tension spring provides better vibration and longer machine life.
    • Four vibrator needles available ranging from 32 mm to 60 mm with a choice of 6 or 10 m rubber hose.
    • Comes with either Dynapac housing and coupling or pin-type coupling.
    • Petrol or diesel engine, models are efficient, powerful, and extremely durable.

  •

     TCV 32

    TCV 38

    TCV 45

     TCV 60

    Vibrator Head Diameter mm

     32x480

     38x500

    45x505

     60x505

    Flexible Shaft Diameter mm

    10

    10

    12

    12

    Rubber Hose Diameter mm

    28

    28

    32

    32

    Amplitude

    1.2

    1.6

    2.0

    2.4

    Vibration Per Min VPM

    9,000-12,500

    9,000-12,500

    9,000-12,500

    9,000-12,500

    Shaft Set Weight Kg

    17

    17.5

    18

    23.5
  • Download Attachment
